FASTER (2.5MS) & MORE ACCURATE (+/-0.1%)
ELECTRONIC PRESSURE REGULATORS Enfield’s TR series of electro pneumatic regulators deliver market-leading pressure and vacuum control with unmatched speed and accuracy.
With pre-assembled starter kits, integration is easy. Remove the hassle of setup and wiring.
HIGH PERFORMANCE
When other pressure regulators are reaching the limit of their technical specifications, this is where the TR’s performance begins:
* EXTREMELY FAST
A shift time of less than 2.5ms delivers a near instantaneous pressure response, minimizing perceivable lag and making complex and multi-loop controls easy
* VERY ACCURATE
With an accuracy of (+/- 0.1%) the TR is able to outperform even high performance regulators
* VACUUM & POSITIVE PRESSURE
Direct-acting voice coil technology combined with a pressure balanced spool allows the TR to handle full vacuum through 145 psi in a single unit
COMPANIES WHO CHOOSE ENFIELD
KEY FEATURES
A partial list of the key features that separate the TR pressure regulator’s performance from that of other electronic pressure regulators:
* NO MINIMUM PRESSURE
Designed to operate across the full range of full vacuum through 145 psig, the TR does not require any minimum pressure
* STEPLESS TRANSITIONING
Unlike other regulators, the TR delivers smooth performance without the “steps” seen in other regulators when they begin to open
* PRESSURE BALANCED
A pressure balanced design prevents loss of performance across the full pressure range
* HIGH BANDWIDTH
Extremely fast, the TR is has a cutoff frequency greater than 100hz allowing it to follow complex, quick profiles
* DIRECT-ACTING
The TR is driven directly from a high-speed voice coil actuator (VCA) giving it its top-of-the-line performance
* MULTIPLE FLOW RATES
The TR comes in two flow rates for either 460 or 1300 slpm
VIDEOS
SEE EXAMPLES OF HOW THE TR CAN INCREASE THE PERFORMANCE OF YOUR NEW OR EXISTING APPLICATION

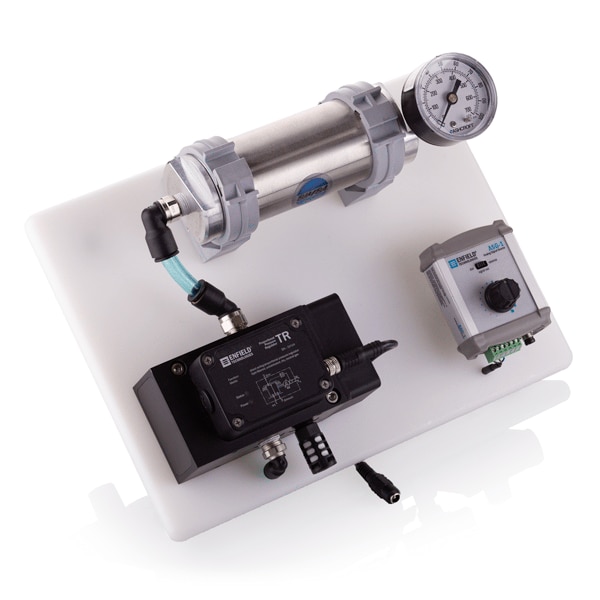

TR STARTER KITS
WANT AN EASY WAY TO BEGIN TESTING?
The TR Pressure Control Starter Kit offers a quick and cost effective method of adding pressure control to an application.
Pre-wired/plumbed and ready-to-go out of the box, this kit provides a known-good starting point for development efforts and makes adding fast accurate pressure control to both existing and new applications easy.
WHAT PEOPLE ARE SAYING...
“Very Fast...”
“This regulator is working perfectly…”
“The unit works great and thank you for the help that you provided...”
“The product works great, and is very precise...”
|
|
|
